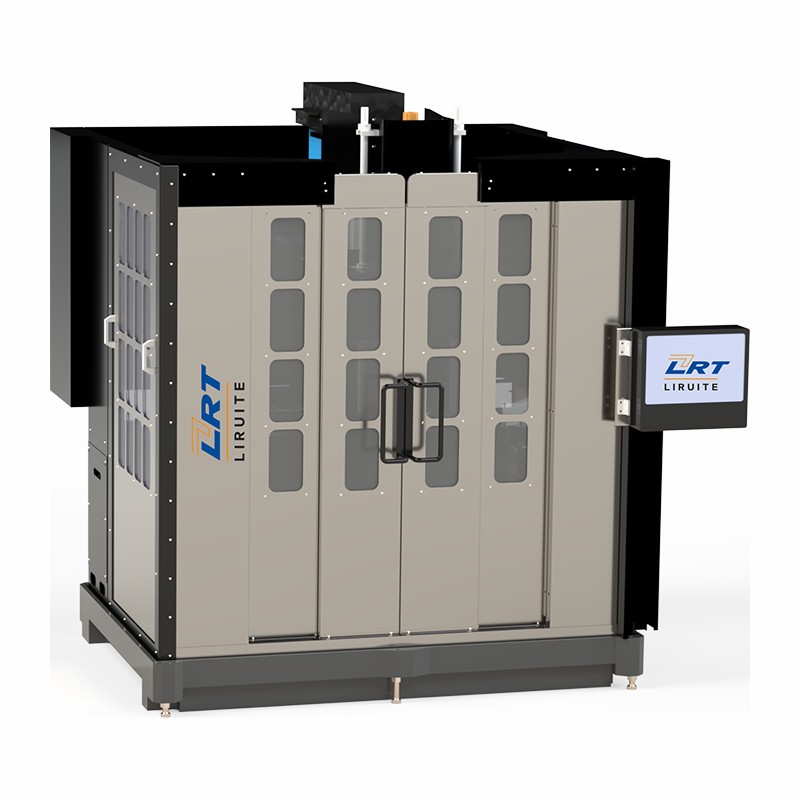

Vertical Multiple-spindle Honing Machine
Product Details
1, Core technical features
Multi axis collaborative machining
Adopting a multi axis parallel design, multiple hole positions can be processed simultaneously, significantly improving batch processing efficiency. The spindle system is usually equipped with high-precision bearings (such as imported bearings from Sweden) to ensure that the cylindrical accuracy of the processed holes reaches the micrometer level
Intelligent control system
Quantitative feed is achieved through servo motors, combined with variable frequency speed regulation technology, to achieve dynamic matching between spindle speed and reciprocating motion. Some models support full closed-loop control and have automatic measurement compensation function, with a roundness accuracy of up to 0.0005 millimeters
Modular design
Support quick replacement of honing rods and honing bars, suitable for aperture ranges of 1.5-40mm, suitable for through-hole, blind hole, and ultra precision machining needs
2, Typical application scenarios
Automotive manufacturing: precision hole machining for key components such as engine cylinders and hydraulic valves; Aerospace: Processing high-precision bearing holes, mold guides, etc; Compressor industry: Processing complex materials such as hardened connecting rods and turbocharger components
3, Operation and safety regulations
Homework process
First, check the power supply and honing oil circulation system, confirm the equipment status according to the checklist, and then start processing by stepping on the switch
Safety Warning
Attention should be paid to warning signs such as "Beware of Hand Pinching" during equipment operation, and power must be cut off during maintenance
4, Technological development trends
Domestic enterprises have broken through remote operation and maintenance technology and developed honing machine tools with intelligent monitoring functions. Their performance indicators have reached the international advanced level, and their applications in the aerospace field have further expanded
1, Processing capability parameters
Aperture range
Universal model: Φ 16- Φ 300mm (standard fixture holds workpiece outer diameter of Φ 100- Φ 400mm)
Special model: can be expanded to Φ 50- Φ 600mm (deep hole honing machine)
Range of hole depth
Conventional processing: maximum 1000mm
Deep hole model: 1-12m (customized)
Processing accuracy
Roundness: 0.002mm
Cylindricity: 0.003mm
Surface roughness: Ra0.4 (regular model) to Ra0.05 (high-precision model)
2, Motion control parameters
Spindle system
Speed range: 50-1200rpm (variable frequency stepless speed regulation)
Reciprocating speed: 0-30m/min (hydraulic servo control)
Feed system
Stroke length: 0-300mm (standard)
Stroke speed: 4-365 times/minute (CNC adjustable)
3, Power and energy consumption parameters
Motor configuration
Spindle motor: 3.0-7.5KW (variable frequency drive)
Reciprocating system: 4.5KW (including servo motor)
Cooling system
Oil pump flow rate: 100L/min
Fuel tank capacity: 150-200L (two-stage filtration accuracy of 30 μ m)
4, Structural parameters
Machine size
Standard model: 1500 × 1300 × 2100mm (compact)
Large model: 1800 × 1500 × 5500mm (heavy-duty machining)
Weight range
Lightweight: 1820KG
Heavy duty: 3800KG
5, Control system
Standard features: digital travel setting, automatic measurement compensation
Our advantages
1：15 years of experience in research and production of honing machines
2： Honing machine operating software with independent intellectual property rights
3：The motor and electrical components are sourced from European or Japanese brands
4：Reliability is recognized by the market
5：Excellent technical team
6：Excellent after-sales service team
Why choose us
1： Since 2010, a highly recognized honing machine manufacturer in the Chinese market.
2： We have an experienced, young, and responsible team.
3： We have an excellent technical team. We are proud of our products.
4： Quality assurance! Before delivering to the customer, the factory's quality supervision department strictly controls the quality.
5： Customize special honing machines and tools according to customer needs for honing special workpieces.
